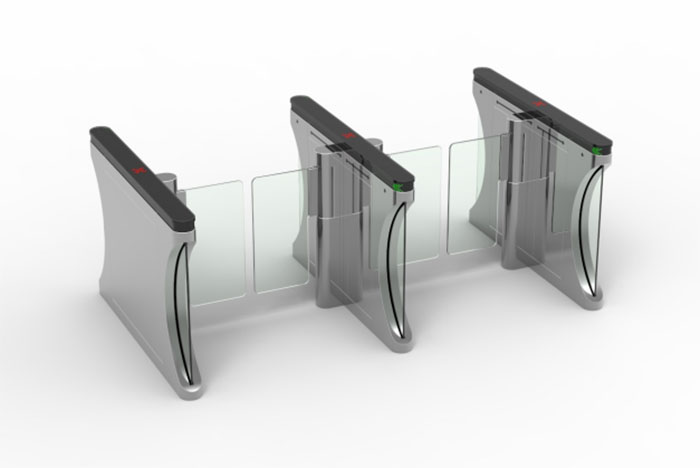

High Wing Speed Gate
ZOJE-BST200 High Wing Speed Gate is a highly customizable speed gate. Its top is covered by a piece of black tempered glass and can be installed with various types of readers. The height of the swing door can be raised to 1.8 meters to achieve the best protection function.
Send Inquiry
Product Description
ZOJE-BST200 speed gate turnstiles are flexible enough to be installed in any interior situation.
With its two swing doors,the speed gate turnstile channels and manages people entering or moving around buildings. It works as a boundary between public area and private section.
These optical speed gate turnstiles are able to control one-way or bi-directional enter or exit accordingly.
Cabinet is made of premium stainless steel to maintain a long-term use.
It can be integrated with any kind of access controller system (e.g.: RFID device, QR code, Fingerprint and face recognition).Also easy to interface with your existing system.
Size and shapes can be customized. Welcome to contact us for more details.
Product Parameter (Specification)
| Standard | Optional | |
| Turnstile Type | Speed gate turnstile | - |
| Dimension | 1400*120/260*1000mm (L*W*H) | Customized |
| Material | 304 Stainless Steel | 316 Stainless Steel |
| Channel Width | 600mm | 900mm /Customized |
| Door Material | Acrylic | Tempered glass |
| Drive Type | Brushless motor | Servo motor |
| Unlock time | 0.2S | |
| Direction | Single / Bidirectional | - |
| Power Supply | AC110-230,50/60Hz | - |
| Operation Voltage | DC24V,3A | - |
| Function | Fail safe, anti-clamping | |
| Working environment | Indoor & outdoor | - |
| Working Temperature | -70 C -15 C | - |
| Relative Humidity | Less Than 95%, No Condensation | - |
| Pass Speed | 35-40person/Minute | - |
| Input Interface | Dry contact/Relay Signal | - |
| Communication Interface | RS485/TCPIP | - |
| LED Indicator | Yes | - |
| Emergency | Open Automatic | - |
| Access Control | Can be integrated with any kind of access control system. | |
Product Feature And Application
ZOJE-BST200 speed gate turnstile
● Unique technology: Self-developed mechanical structure together with powerful motor enables the turnstile running smoothly and stably in the long run.
● The width of the channel can be customized according to project requirements
● The height of swing doors can be customized as needed.
● High sensitivity optical sensors are integrated to detect visitors approaching, ensuring top safety for all pedestrians.
● The Equipment Has A Device And Circuit Testing Function, Easy Maintenance
● Equipment With Traffic Indicator
● Equipment With Automatic Protection, Automatic Reset
● Unified standard external electrical interface, which can be connected with various reading and writing devices(ID Card / IC Card / EMcard / Fingerprint Face Recognition / QR Code / ESD system)
● ZOJE-BST200 high wing speed gate turnstile widely used in office building,bank and other places, can be easily integrated with your existing control software.
