Anti-tailgating AB Speed Turnstile Gate
ZOJE-BST800 Anti-tailgating AB speed turnstile gate has an absolute anti-tailgating function. The design of the AB two-swing door requires double authentication of the passers. With the IR sensor in the channel, when two or more people appear in the channel, an alarm will be sounded, and the second door will not open until the trailing person exits the channel.Applicable to airports, customs, etc.
Send Inquiry
Product Description
ZOJE-BST800 using customized intelligent coding transmission, longer life and better self-protection ability of the movement;
Adopt the latest second-generation ARM control technology, easy to expand and cost-effective
Smooth operation, adjustable speed, zero wear, fast opening and closing speed, and accurate parking;
Modular structure design, simple operation and less maintenance;
The independent research and development of a new generation of movement adopts an integrated design (integrated design of main shaft/clutch/reducer/motor/encoder), which effectively improves the concentricity during transmission and reduces the need and wear for main shaft/clutch/reduction. Increases the service life.
A variety of modules could be integrated to control the access including IC / ID / RFID card readers, QR code reader, fingerprint recognition, face recognition, iris recognition and other biometric methods.
Size and shapes can be customized. Passage widths are flexible according to need.
Large width passage can be customized for disabled and trolley access.
With its user-friendly working system, this speed gate turnstile is low in power consumption and low in noise.
Product Parameter (Specification)
| Standard | Optional | |
| Turnstile Type | Anti-tailgating AB Speed gate turnstile | - |
| Dimension | 2950*160*1000mm (L*W*H) | Customized |
| Material | 304 Stainless Steel | 316 Stainless Steel |
| Channel Width | 600mm | 900mm /Customized |
| Door Material | Acrylic | Tempered glass |
| Drive Type | Brushless motor | Servo motor |
| Unlock time | 0.2S | |
| Direction | Single / Bidirectional | - |
| Power Supply | AC110-230,50/60Hz | - |
| Operation Voltage | DC24V,3A | - |
| Function | Fail safe, anti-clamping,anti-tailgating | |
| Working environment | Indoor & outdoor | - |
| Working Temperature | -70 C -15 C | - |
| Relative Humidity | Less Than 95%, No Condensation | - |
| Pass Speed | 35-40person/Minute | - |
| Input Interface | Dry contact/Relay Signal | - |
| Communication Interface | RS485/TCPIP | - |
| LED Indicator | Yes | - |
| Emergency | Open Automatic | - |
| Access Control | Can be integrated with any kind of access control system. |
Product Feature And Application

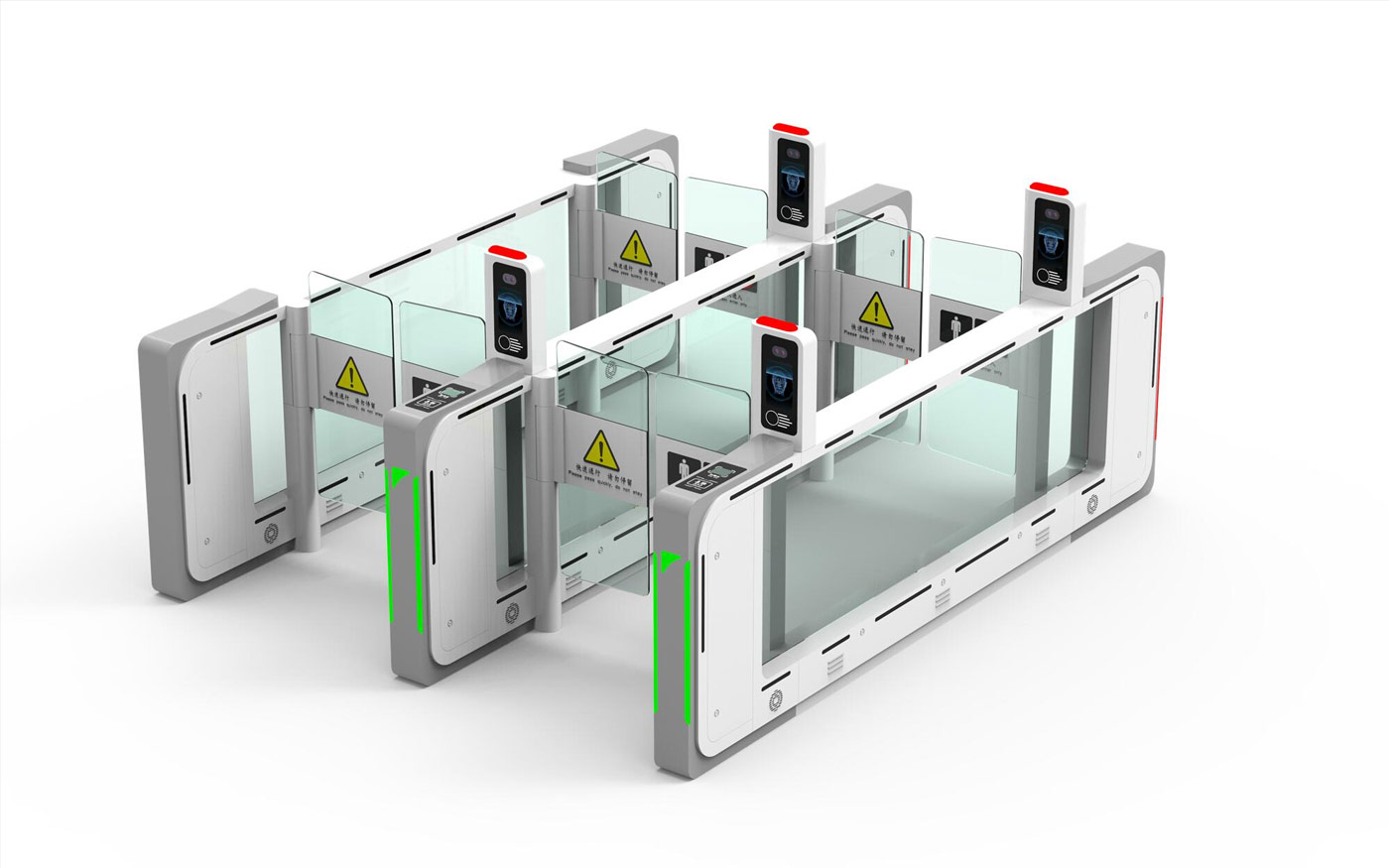

ZOJE-BST800 AB speed gate turnstile
● Unique technology: Self-developed mechanical structure together with powerful motor enables the turnstile running smoothly and stably in the long run.
● The width of the channel can be customized according to project requirements
● The height of swing doors can be customized as needed.
● High sensitivity optical sensors are integrated to detect visitors approaching, ensuring top safety for all pedestrians.
● The Equipment Has A Device And Circuit Testing Function, Easy Maintenance
● Equipment With Traffic Indicator
● Equipment With Automatic Protection, Automatic Reset
● Unified standard external electrical interface, which can be connected with various reading and writing devices(ID Card / IC Card / EMcard / Fingerprint Face Recognition / QR Code / ESD system)
● ZOJE-BST800 speed gate turnstile widely used in airport, customs,office building,bank and other places, can be easily integrated with your existing control software.
