Anti-collision Flap Turnstile

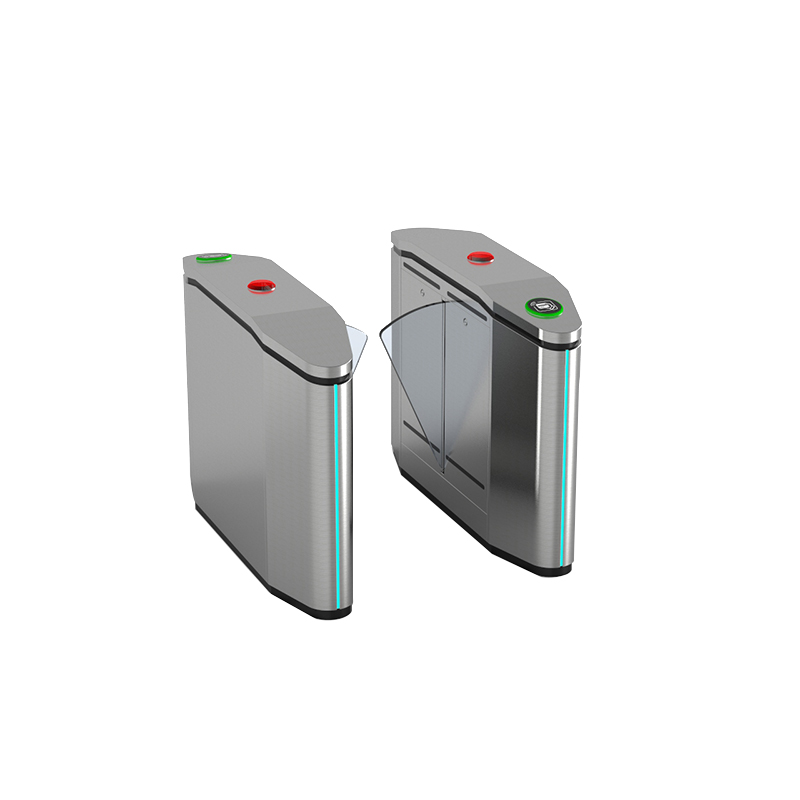

ZOJE-Y109 Anti-collision Flap Turnstile is a heavy duty flap turnstile. It is equipped with an anti-collision movement independently developed by ZOJE, which can prevent collision during use, and cooperate with the intelligent control system to achieve fast and stable operation and accurate verification.
Send Inquiry
Product Description
ZOJE-Y109 Anti-collision Flap Turnstile made of good quality stainless steel 304 or 316; With the waterproof & dust proof designs, the flap turnstile gate can suitable for outdoor and indoor.
With industry leading mechanical structure created by ZOJE and advanced servo control system and unique motor control technology, the turnstile can work quickly & stably and validate accurately.And with anti-collision function, increase the service life.
ZOJE is always proud to talk about its self-designed mechanical structure which perfectly works together with the powerful motors as they never let customers down, doing their duties properly for long-term and stable security obligations.
Customization are available in every aspect of this flap barrier turnstile gate according to different project requirements. Welcome to contact us for more details.
Product Parameter (Specification)
| Standard | Optional | |
| Turnstile Type | Flap turnstile | - |
| Dimension | 1400*300*1000mm (L*W*H) | Customized |
| Material | 304 Stainless Steel | 316 Stainless Steel |
| Channel Width | 550mm | 900mm /Customized |
| Door Material | Acrylic | Tempered glass/Red Soft shell |
| Drive Type | Brush motor | Brushless/Servo motor |
| Unlock time | 0.2S | |
| Direction | Single / Bidirectional | - |
| Power Supply | AC110-230,50/60Hz | - |
| Operation Voltage | DC24V,3A | - |
| Function | Fail safe, anti-clamping,anti-pinch | |
| Working environment | Indoor & outdoor | - |
| Working Temperature | -70 C -15 C | - |
| Relative Humidity | Less Than 95%, No Condensation | - |
| Pass Speed | 35 person/Minute | - |
| Input Interface | Dry contact/Relay Signal | - |
| Communication Interface | RS485/TCPIP | - |
| LED Indicator | Yes | - |
| Emergency | Open Automatic | - |
| Waterproof | IP67 | - |
| Access Control | Can be integrated with any kind of access control system. |
Product Feature And Application
ZOJE-Y109 flap turnstile
● Unique technology: Self-developed mechanical structure together with powerful motor enables the turnstile running smoothly and stably in the long run.
● The self-developed anti-collision motor can prevent collision. Increase service life
● High sensitivity optical sensors are integrated to detect visitors approaching with mechanical anti-pinch function,ensuring top safety for all pedestrians.
● The Equipment Has A Device And Circuit Testing Function, Easy Maintenance
● Equipment With Traffic Indicator
● Equipment With Automatic Protection, Automatic Reset
● Unified standard external electrical interface, which can be connected with various reading and writing devices(ID Card / IC Card / EMcard / Fingerprint Face Recognition / QR Code / ESD system)
● ZOJE-Y109 flap turnstile gates are widely applied to ports, clubs, metro stations, hotels, intelligent buildings, high-end neighbourhood, etc.
